Hot Runner

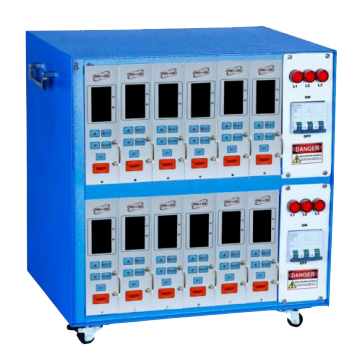

Multi Zone Temperature Control Cabinet GN Series
Our Products
download brochure
Please download our document to see specific data of the aservice and how we work.
Multi Zone Temperature Control Cabinet GN Series is an advanced industrial control panel designed for centralized monitoring and control of multiple hot runner zones in injection molding systems. It ensures uniform temperature distribution, improving product quality and process efficiency.
This temperature control cabinet is ideal for managing multiple hot runner controllers in a single integrated system for industrial applications.
Reliable Temperature Control Cabinet GN Series for Hot Runner Systems
Features
Easy assembly and disassembly structure
Adopt galvanized sheet in appropriate thickness,
light & sturdy, anticorrosive & antirust
Size and electric interface of control module are
compatible with other brands, such as YUDO, Athena
Gold-plated terminals in module socket and wiring compacted
by machine, input and output signals connected reliably
Selectable connector type and wiring mode
2-zone, 4-zone, 6-zone, 8-zone, 10-zone, 12-zone
and 24-zone are provided
Specifications
| Type | PRTC-02A | PRTC-02B | PRTC-04A | PRTC-06A | PRTC-08A | PRTC-10A | PRTC-12A | PRTC-24A |
|---|---|---|---|---|---|---|---|---|
| Zone | 1 ~ 2 | 1 ~ 2 | 3 ~ 4 | 5 ~ 6 | 7 ~ 8 | 9 ~ 10 | 11 ~ 12 | 13 ~ 24 |
| Power Switch | 2P-40A×1 | None | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×1 | 3P-63A×2 |
| Power Supply | 1-Phase 3-wire AC220V | 1-Phase 3-wire AC220V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V | 3-Phase 5-wire AC380V |
| Output Connector | 16PIN×1 or Cable | 16PIN×1 or Cable | 16PIN×1 | 24PIN×1 | 16PIN×2 | 24PIN×2 | 24PIN×2 | 24PIN×4 |
| Dimension (mm) | L=185 H=200 D=290 | L=130 H=200 D=290 | L=310 H=210 D=290 | L=410 H=210 D=290 | L=510 H=210 D=290 | L=610 H=210 D=290 | L=710 H=210 D=290 | L=720 H=420 D=290 |
The Temperature Control Cabinet GN Series allows centralized monitoring and control of multiple hot runner zones, ensuring consistent temperature distribution across nozzles and manifolds.
Connector protective housing type & Wiring
A: Single Hook
B: Dual Hook
C: Dual Button
Wiring mode 1
Wiring mode 2
Why Choose Multi Zone Temperature Control Cabinet GN Series
The GN Series Temperature Control Cabinet is specifically designed for applications requiring multi-zone temperature management. It allows operators to monitor and control multiple zones simultaneously, ensuring consistent heat distribution across molds.
Its compatibility with various controller brands and flexible configuration options make it suitable for complex industrial setups.
Applications of Multi Zone Temperature Control Cabinet
- Injection molding machines
- Plastic manufacturing industry
- Hot runner systems
- Industrial multi-zone temperature control
Advantages of Multi Zone Control Panel
- Centralized multi-zone control
- Uniform temperature distribution
- High compatibility with controllers
- Durable industrial construction
- Easy maintenance and operation
We are leading Temperature Control Cabinet GN Series manufacturers in India, Mumbai, and Vasai, offering reliable multi-zone hot runner control panels for industrial applications.
Frequently Asked Questions
What is a Multi Zone Temperature Control Cabinet?
A Multi Zone Temperature Control Cabinet is used to monitor and control multiple temperature zones in hot runner systems for injection molding.
Where is GN Series Control Cabinet used?
It is used in injection molding machines, plastic manufacturing industries, and hot runner systems.
What is the benefit of multi-zone control?
It ensures uniform temperature distribution, improves product quality, and enhances production efficiency.
Do you manufacture control cabinets in India?
Yes, we manufacture and supply temperature control cabinets across India, including Mumbai and Vasai.
